WELCOME TO HUFSCHMIED
Hufschmied has more than 25 years of experience in the development and manufacturing of milling ools. Manufacturing tools for milling and drilling of plastics, glass fibre and carbon fibre composites.

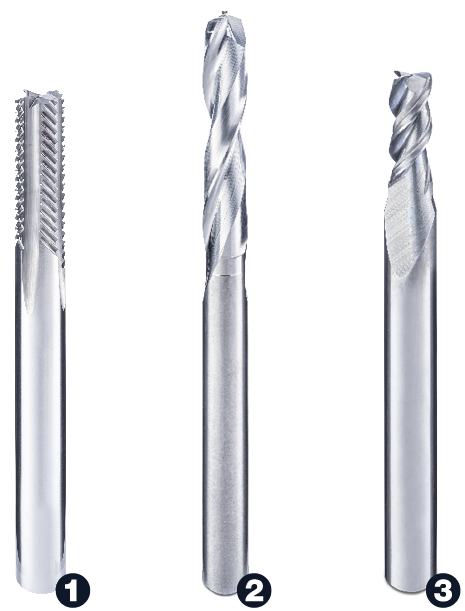

HSC MILLING CUTTERS FOR MACHINING ALUMINIUM
Single- and double-edged tools for machining aluminium. Special cutter geometries and the use of carbides ensure short processing cycles paired with a long service life. Vibration-optimised back edge geometries achieve smooth and burr-free surfaces. Tools are available from stock.
2016 – PRESS RELEASE
Ready for Take-Off: Innovative Processing of CFRP with High Productivity Yields and Substtantial Reduction in Costs
TRADE FAIR DATES
Hufschmied, specialist in the milling of plastics, present their latest developments at numerous trade fairs. Take a close look at our products at our trade fair stands!
PLASTICS AND NEW MATERIALS COST-EFFECTIVE MILLING WITH HUFSCHMIED
Hufschmied Zerspanungs GmbH can look back over 25 years of experience in the machining of new materials. Whether in tool or mould making, model making or lightweight construction in the automotive or aerospace industries - Hufschmied milling cutters achieve excellent results in the high-performance processing of plastics. Our tools are also Best-in-Class for the processing of electrodes in copper or graphite. Of course, our experience is not limited to the manufacturing of milling tools. Apart from the milling of plastics, we develop a whole range of material-optimised tools required for the successful and cost-efficient machining of plastics, GFRP and CFRP.
Milling graphite – with GRAPHIT-LINE by Hufschmied
A tool range optimised for the accurate processing of graphite. Hufschmied tools enable you to achieve excellent dimensional accuracy without the need for post-processing. Furthermore, processing costs in the manufacturing of graphite electrodes are lowered.
Tool examples in the video clip: 63CWIF1210-DIP, 107GR06R-WD, 63CWIRL04-DIP, 63CWIR03-DIP, 110V040040, KD201S021, 110GF-M3
Milling PEEK – with HSC cutters by Hufschmied
Our customers benefit from our long-standing expertise in machining a very diverse range of materials used in medical engineering. Process- optimised tools by Hufschmied: Greater accuracy, higher speed combined with a long service life.
Tool examples in the video clip: HC402F12005, 110SHG06, 110SHG03, 110FPERA04, 110V040040, KD201S021, 110GF-M3
Milling Perspex®/Plexiglas® - defined edges with milling cutters by Hufschmied
A systematic approach to the machining of plastics: With our FRÄSEN PER PLEX® tools, you are able to achieve excellent surface quality and sharply-defined edges when milling and polishing. Straightforward roughing and finishing with just one single tool.
Tool examples in the video clip: 110FPE10-27, 110FPE06, 110FPER03, 110FPER04, 110V040040, HM905L005, KD201S021
Milling Ureol® - with PROTO-LINE by Hufschmied
Ureol® is used increasingly for mould making and fixture construction. The advantages of this material lie in low dust generation, good machining properties of the workpiece surface and a lack of distortion. Touching up or reworking imperfections as well as working with glued blocks pose no problems.
Tool examples in the video clip: HC402F12005, HC402060, HC452030, HC452040, 110V040040, KD201S021, 110GF-M3
Machining CFRP - automotive
Material-optimised carbide milling cutters for the accurate roughing and smoothing process of car body parts. The result: perfect edge quality without the need for post-processing. In 2013, we won Best Overall Result for the processing of CFRP in a benchmark test performed by the Technical University Vienna.
Tool examples in the video clip: 198HS080-S012, 078HO080, 068HO080, PKD100GS12-708-S001, FD164S043120-S001, FB264080, 110W080080-90
Machining CFRP – aerospace
Material-optimised tool range for perfect processing quality – guaranteeing excellent tool life and cutting performance. Hufschmied Zerspanungssysteme GmbH have been awarded Best Overall Result for CFRP machining in a benchmark test performed by the Technical University Vienna in 2013.
Tool examples in the video clip:194HS080-S002, HC650S080-S024, 078HO080, 068HO080, 394GRS080-S001, 1130-30002R, FB26480, 110GF-M8, 110WO080080-90
Machining CFRP – Tapering/Stepping
Process-optimised tools for excellent processing quality – perfect cutting performance and outstanding service life. Hufschmied Zerspanungssysteme GmbH, due to their early focussing on plastics, carbon fibre and glass fibre materials, has achieved a top position in Europe when it comes to the machining of new materials. The advantage lies in wide chip clearance, long tool life and high volume chip removal.
Tool examples in the video clip: HC660BDLS100-S1-DIP, 067HOR080
Machining CFRP - with FIBER-LINE by Hufschmied
In 2013, Hufschmied won Best Overall Result for the processing of CFRP in a benchmark test performed by the Technical University Vienna. These process- and material-optimised tools achieve accurate results without the need for reworking.
Tool examples in the video clip:108ECO08080, 078HO080, 068HO080, PKD100GS12-708-S001, FD164S043120-S001, FB264080, 110W080080-90
